520 Unbraked Trailer

£1,350.00 (ex. VAT)

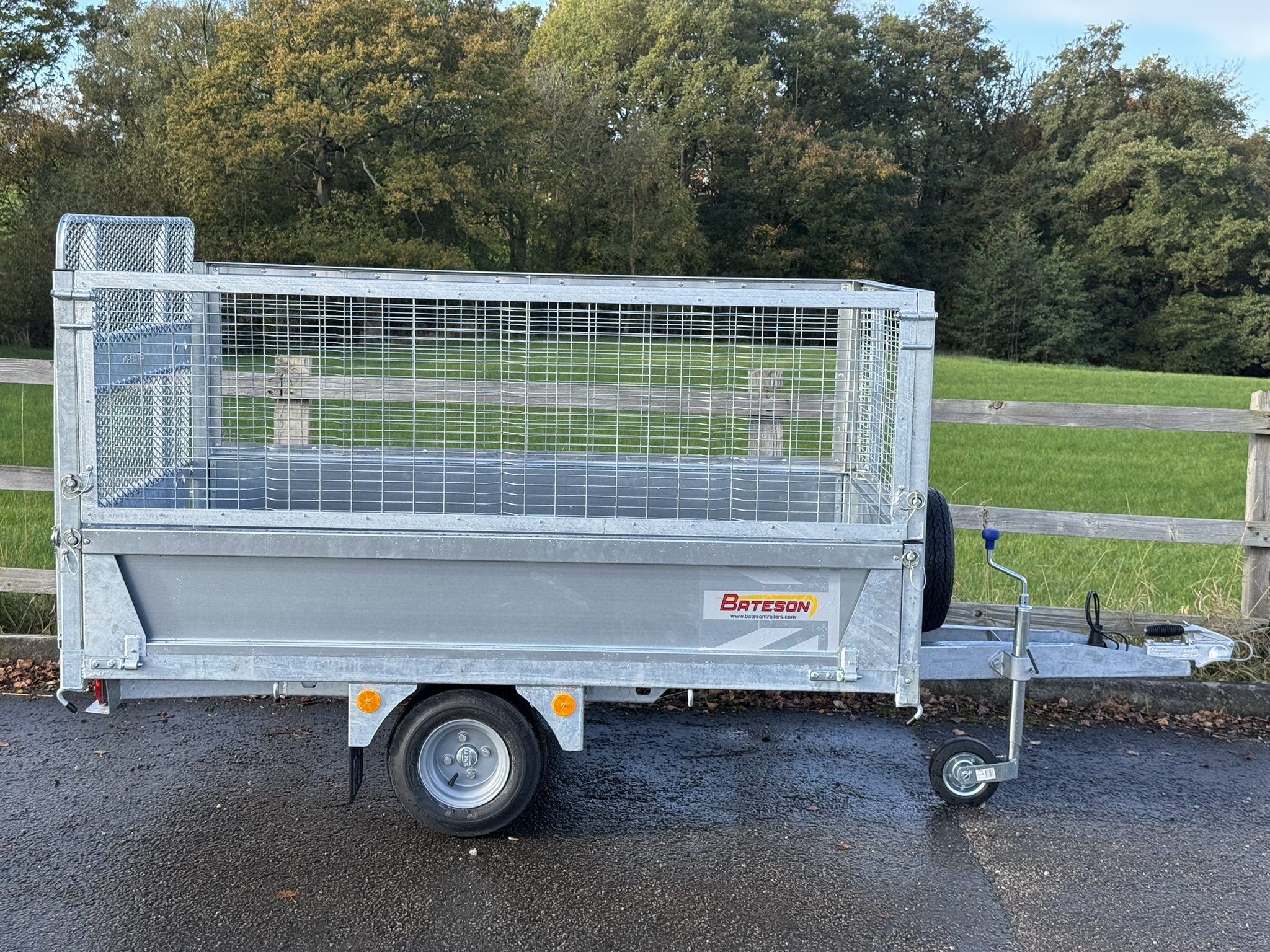

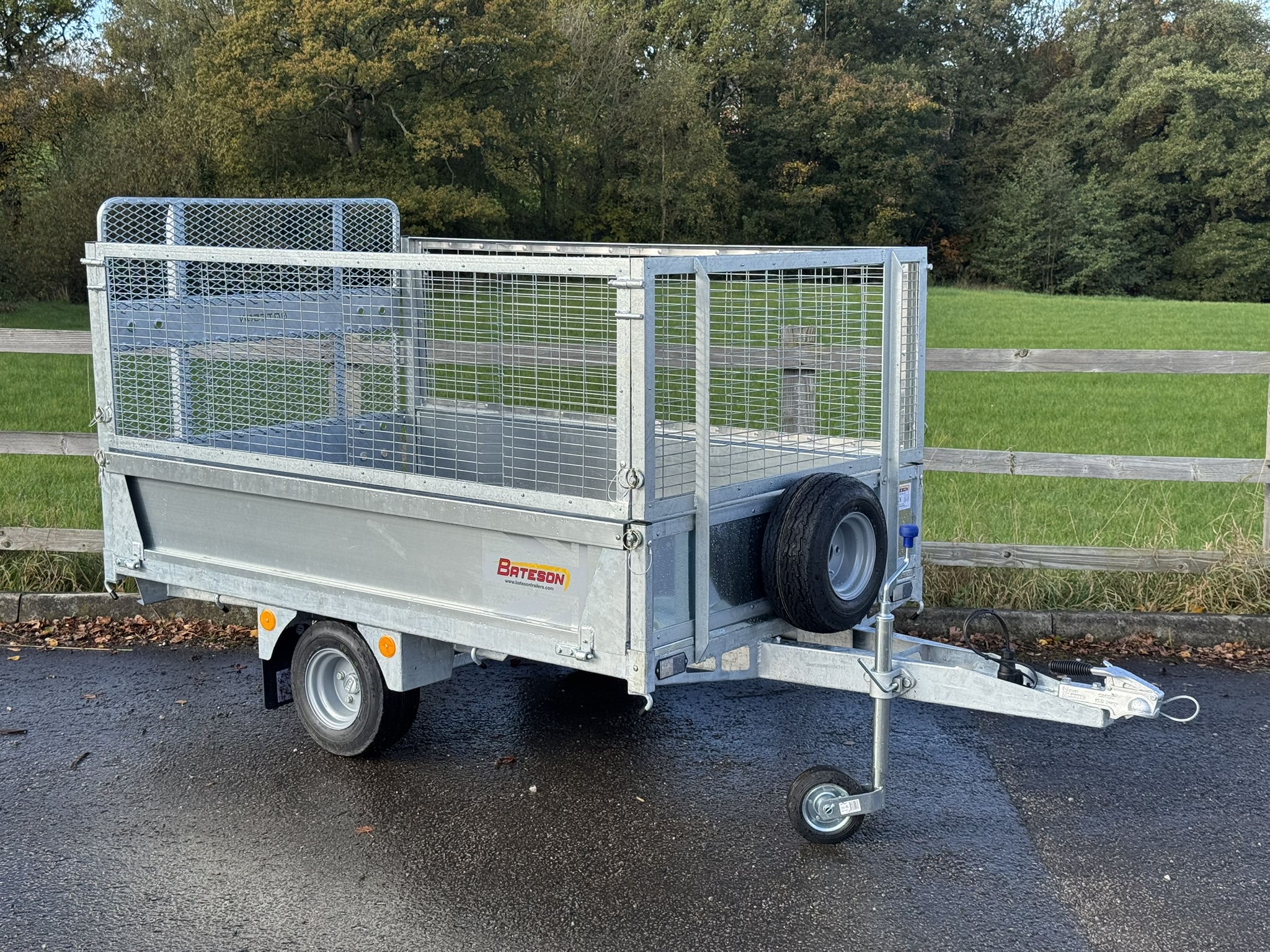

7' x 4' Small single axle general purpose platform trailer

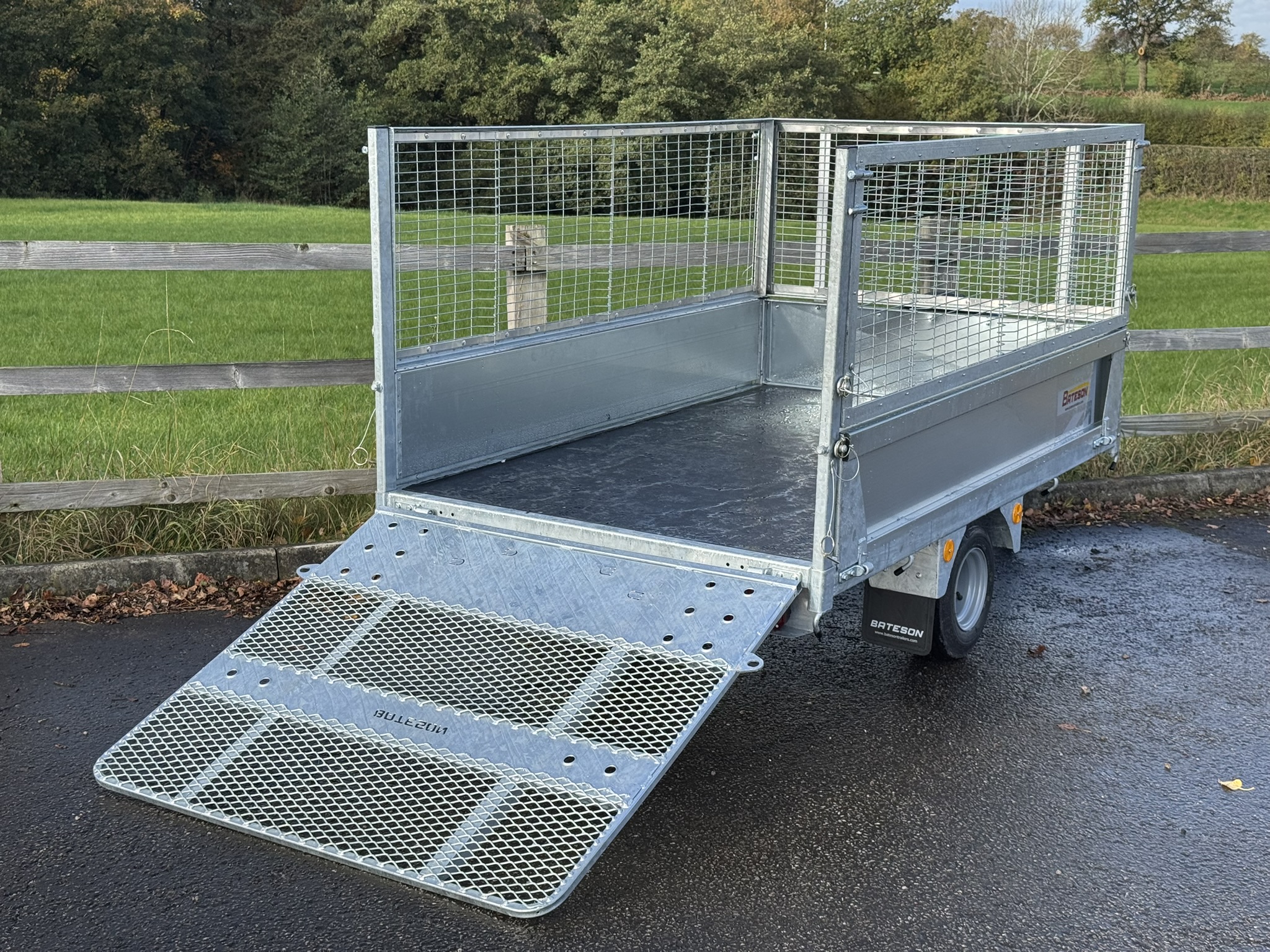

Model shown with ramp tailboard

Model 520 is a lightweight fully galvanised general purpose trailer, for use on or off road.

With a gross weight of 550kg, it does not require overrun brakes and is suitable for use behind most cars, quad bikes and small tractors.

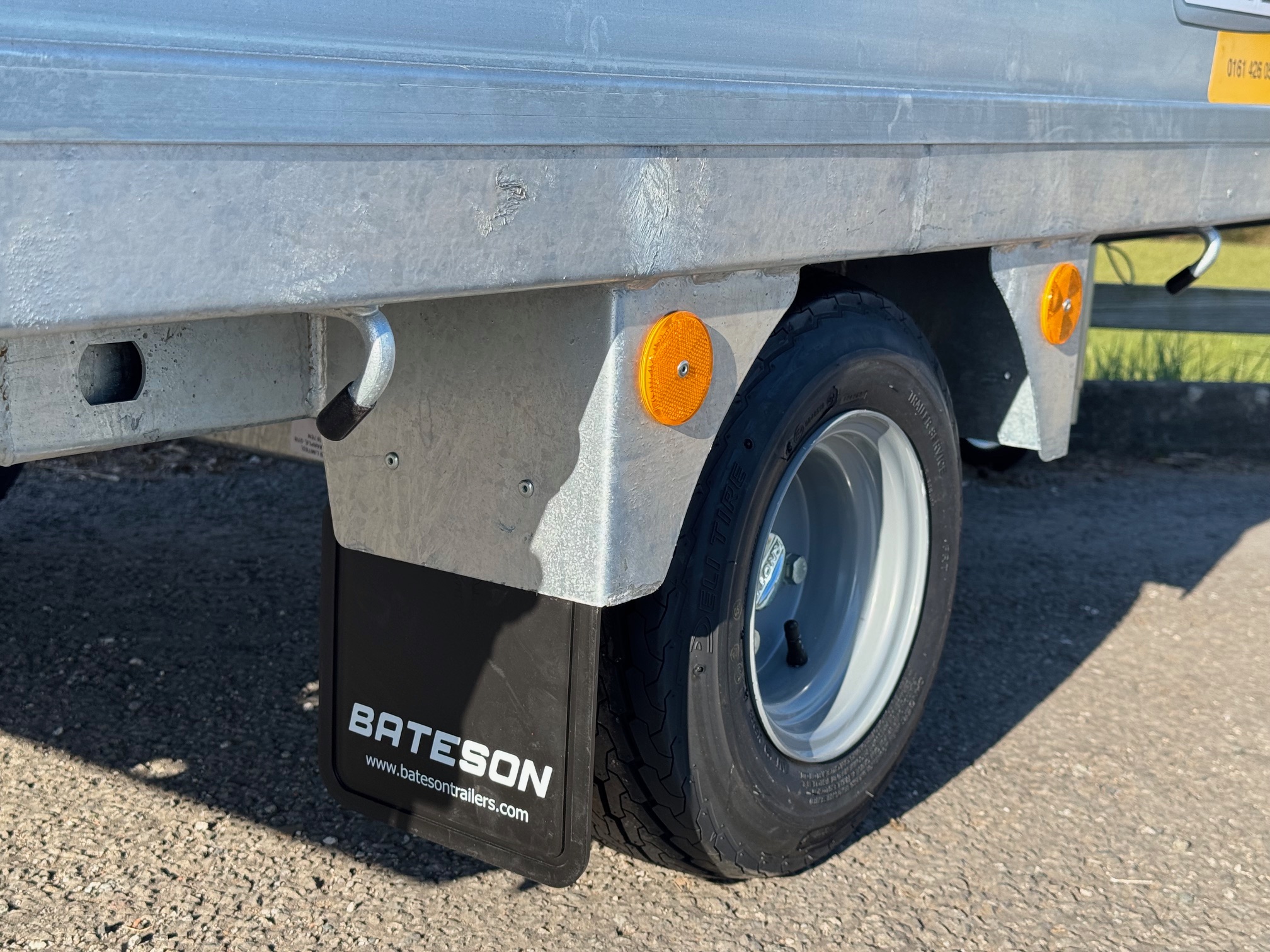

Independent rubber suspension is fitted with 16.5 -6.5 x 8 wide tyres, for high speed use as well as minimising ground pressure. The body size of 2.l x l.25 metres is large enough to accommodate the larger quad bikes, motorcycles and ride on mowers, making the trailer very versatile for a wide range of applications.

The construction is of a similar heavy duty standard to that of our larger trailers, with an 18mm non slip phenol coated floor and 30cm high hinged sides and tailboard folded from 2mm pre galvanised steel, with lift out front panel and rear corner posts.

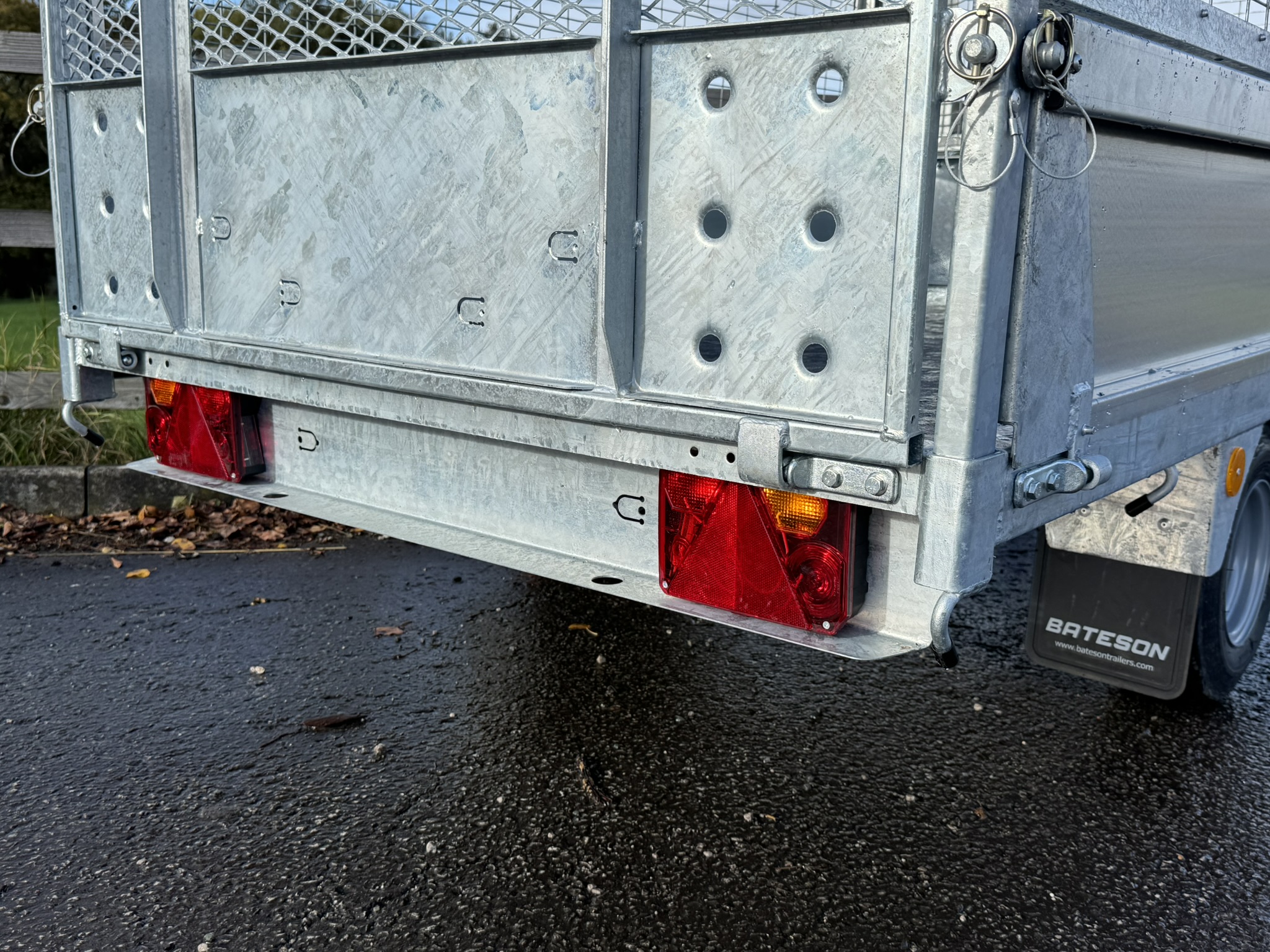

Standard equipment includes independent rubber suspension, cast 50mm lockable ball hitch, front prop stand, rear lights, stop/tail light and indicators and 8 rope hooks.

Trailer Specifications

Trailer Weight And Capacity (KG)

Gross Weight

550

Unladen Weight

132

Capacity

418

Overall Dimensions (MM)

Length

3150

Width

1390

Height

800

Internal Dimensions (MM)

Length

2100

Width

1250

Height

300

Additional Information

Tyre Size

16.5 - 6.5 x 8

Tow Ball Height

450

Product Add-Ons

-
+

Ramp Type Rear Door (replacing the standard door)

View Product Details

£125.00

-
+

Mesh Extension Front and Opening Sides

View Product Details

£340.00

-
+

Front Ladder Rack

View Product Details

£50.00

-
+

Pair Short Rear Corner Posts (for use with mesh sides removed)

View Product Details

£40.00

-
+

Extra Standard Rear Door

View Product Details

£50.00

-
+

Front Jockey Wheel 34mm

View Product Details

£40.00

-
+

Wheel Chock (pair)

View Product Details

£20.00

-
+

Wheel Clamp

View Product Details

£140.00

-
+

2 Meter Ratchet Strap

View Product Details

£7.50

-
+

Delivery Charge (UK Mainland)

View Product Details

£95.00

Quote Calculator

x1 520 Unbraked Trailer £1350

Total £1350
