353H 10'x 6'6" 3.5Ton Hydraulic Tipping Trailer

£5,400.00 (ex. VAT)

10' x 6'6 3.5 ton Hydraulic Tipping Trailer

353H with an optional ladder rack

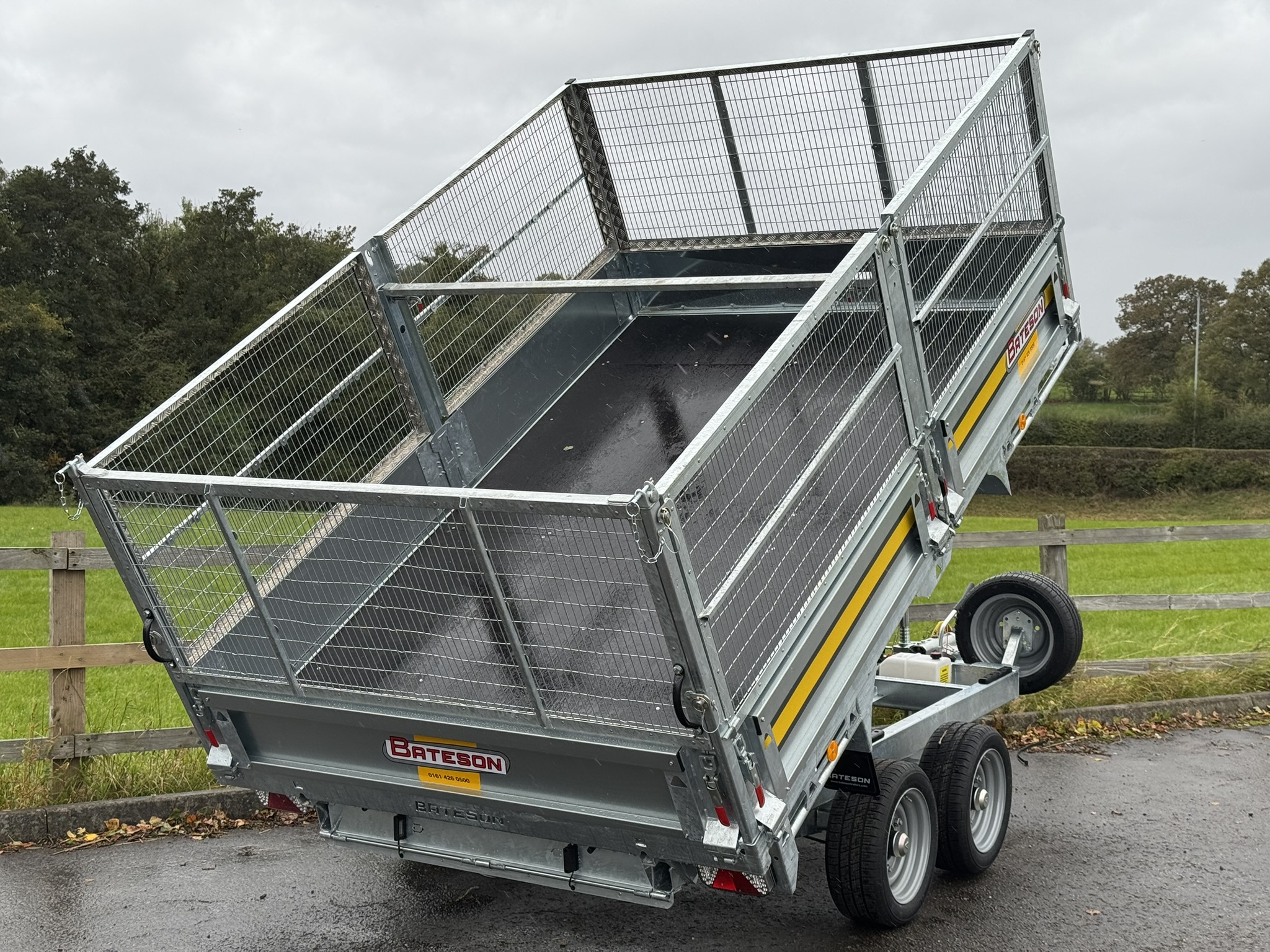

353H is our largest tipping trailer, At the legal maximum 3500 kg it has a good capacity. The 10 feet long body, 6 feet 6 inches wide is very stable when tipped and does not put too much load on the back of the trailer, lifting the towing vehicle, It is not advisable to have a longer or narrower tipping trailer, at this weight, which could be unsafe if used at the maximum load.

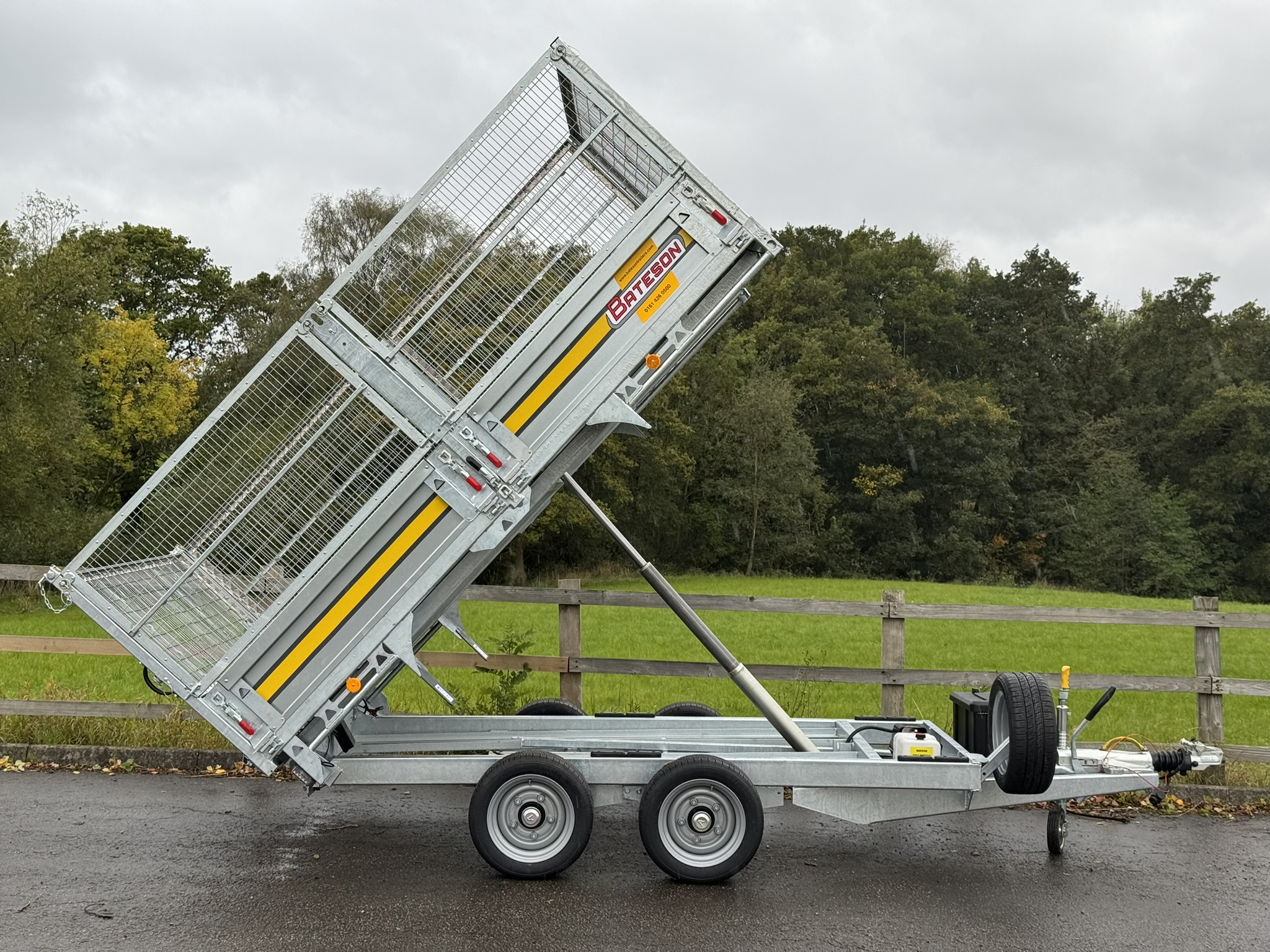

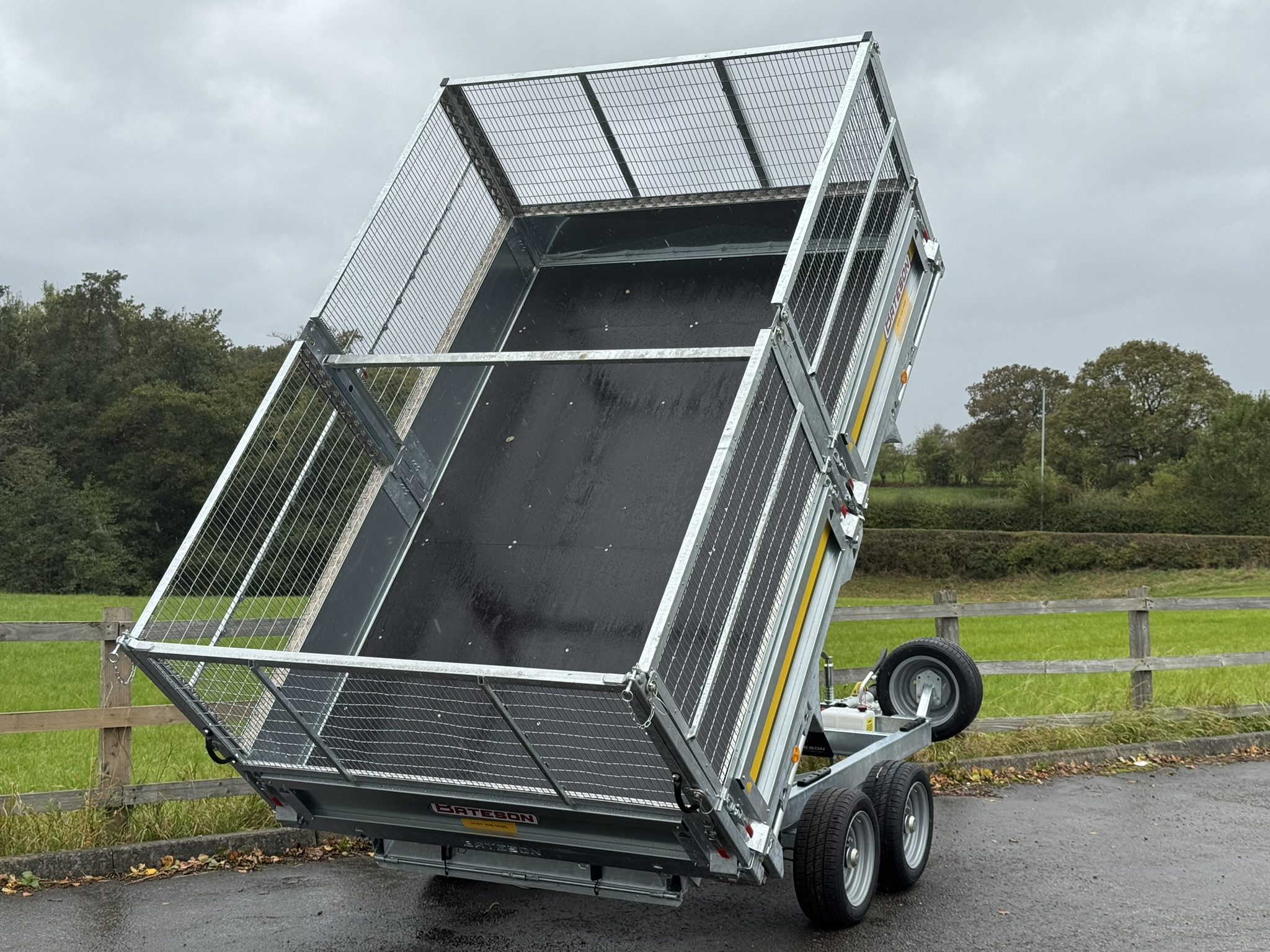

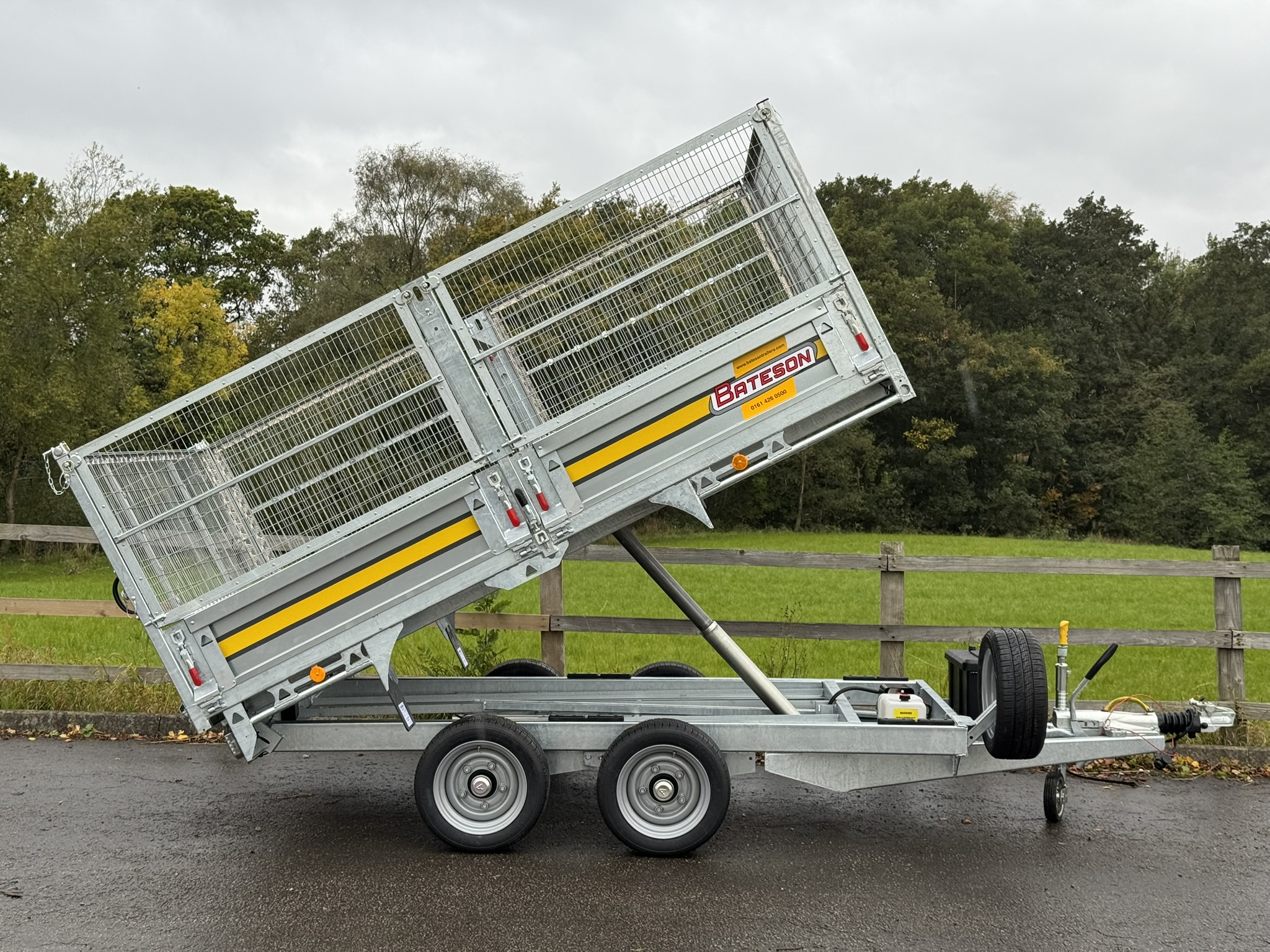

Twin 1800 kg Avonride axles have large 250 mm auto-reversing brakes and low profile 195 x 13 tyres offering a low centre of gravity and low loading height. The trailer is tipped by a two stage cylinder operated by a 12v electric pump with a remote control stored in a lockable battery box.

The trailer battery can be charged from the towing vehicle via the optional grey 7 pin auxiliary plug or from the power pin on a 13 pin plug.

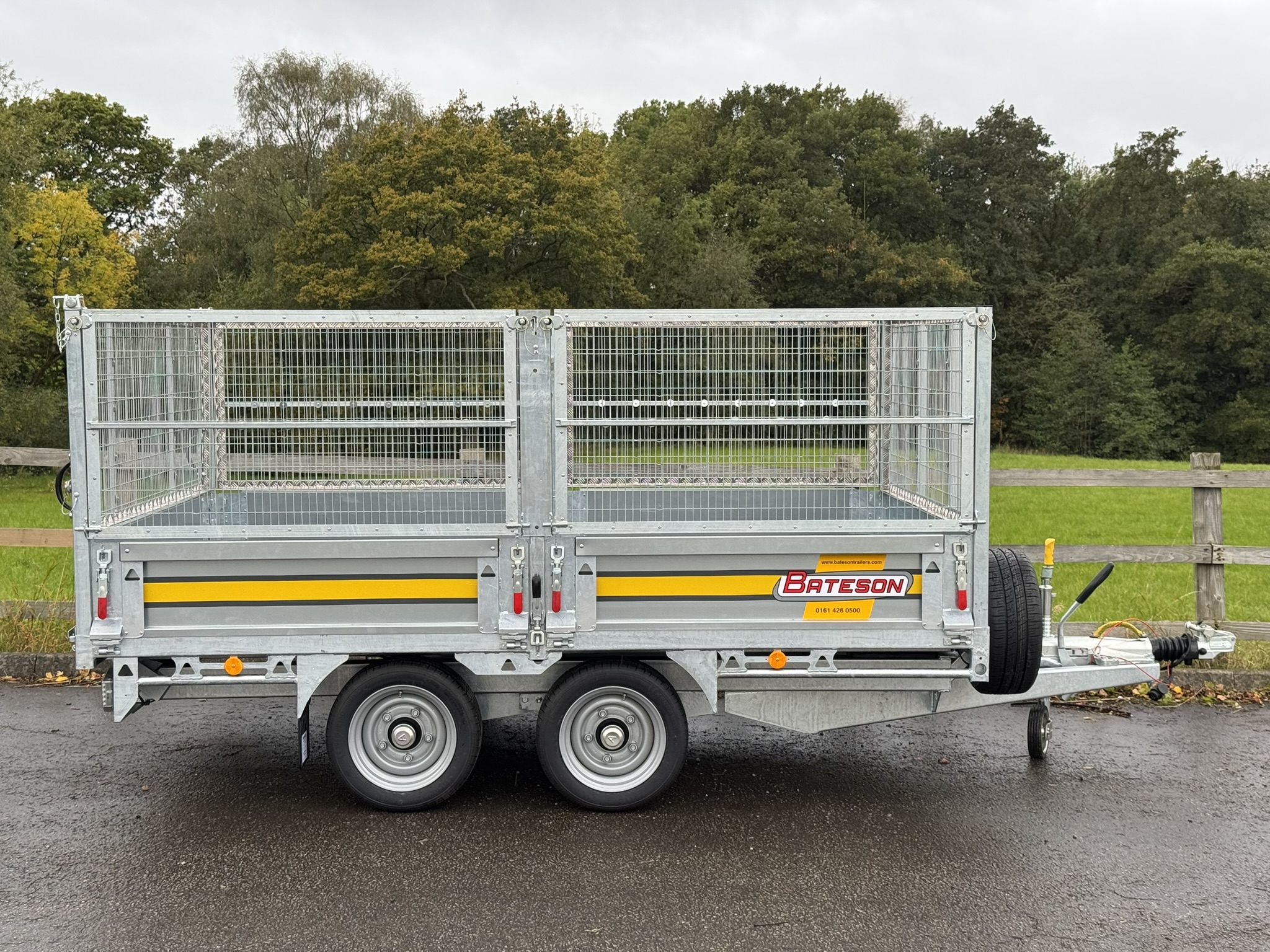

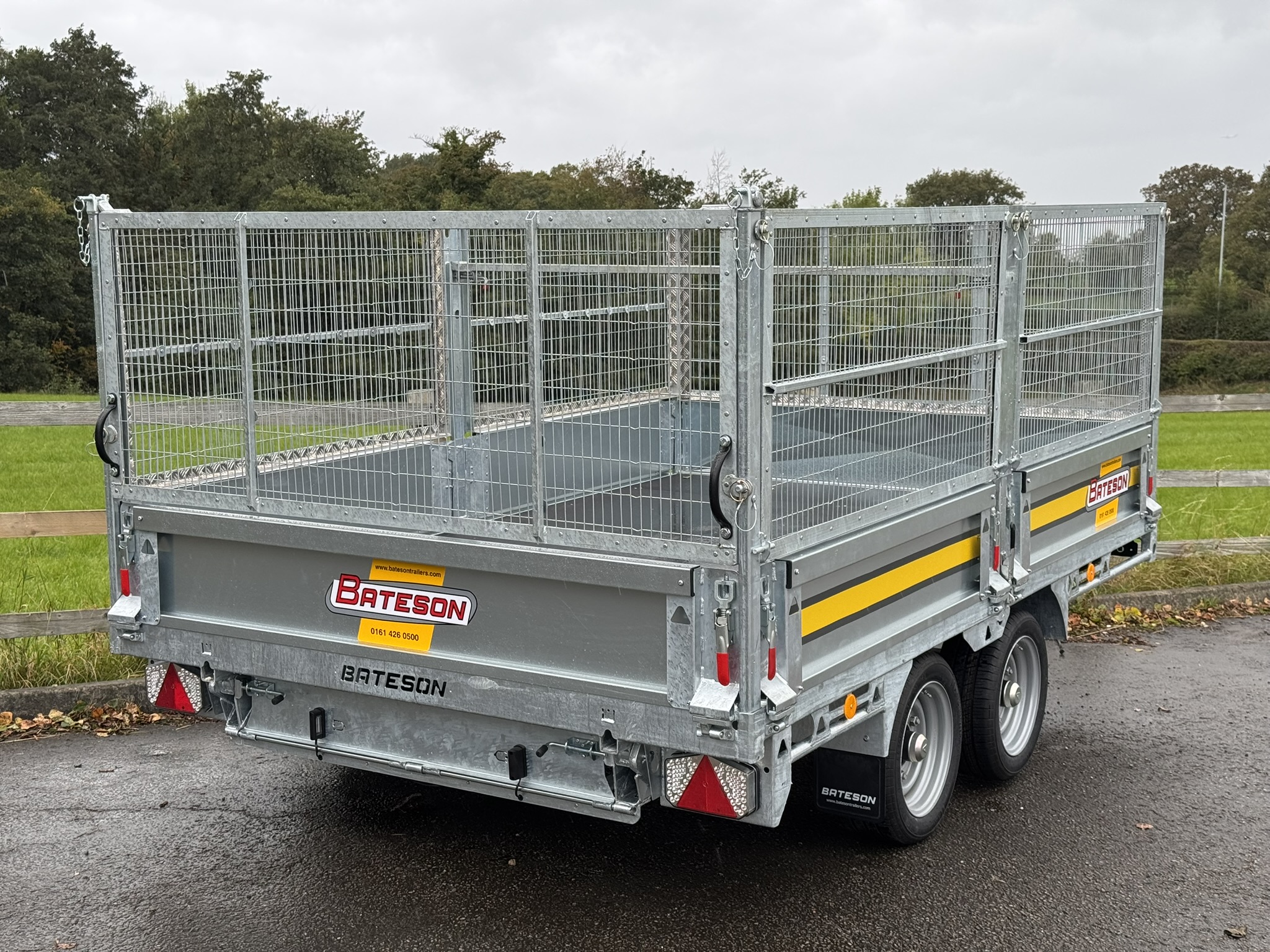

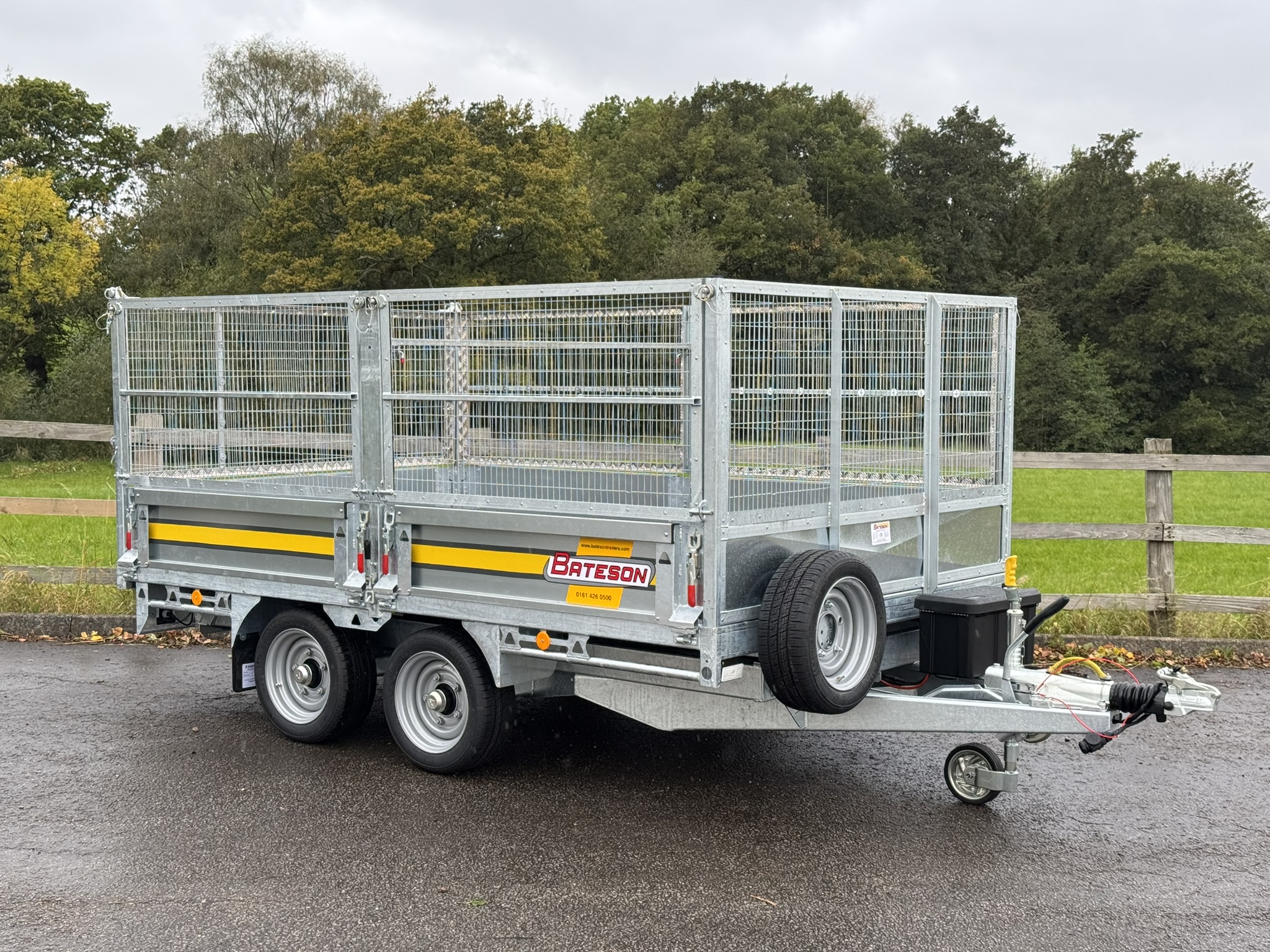

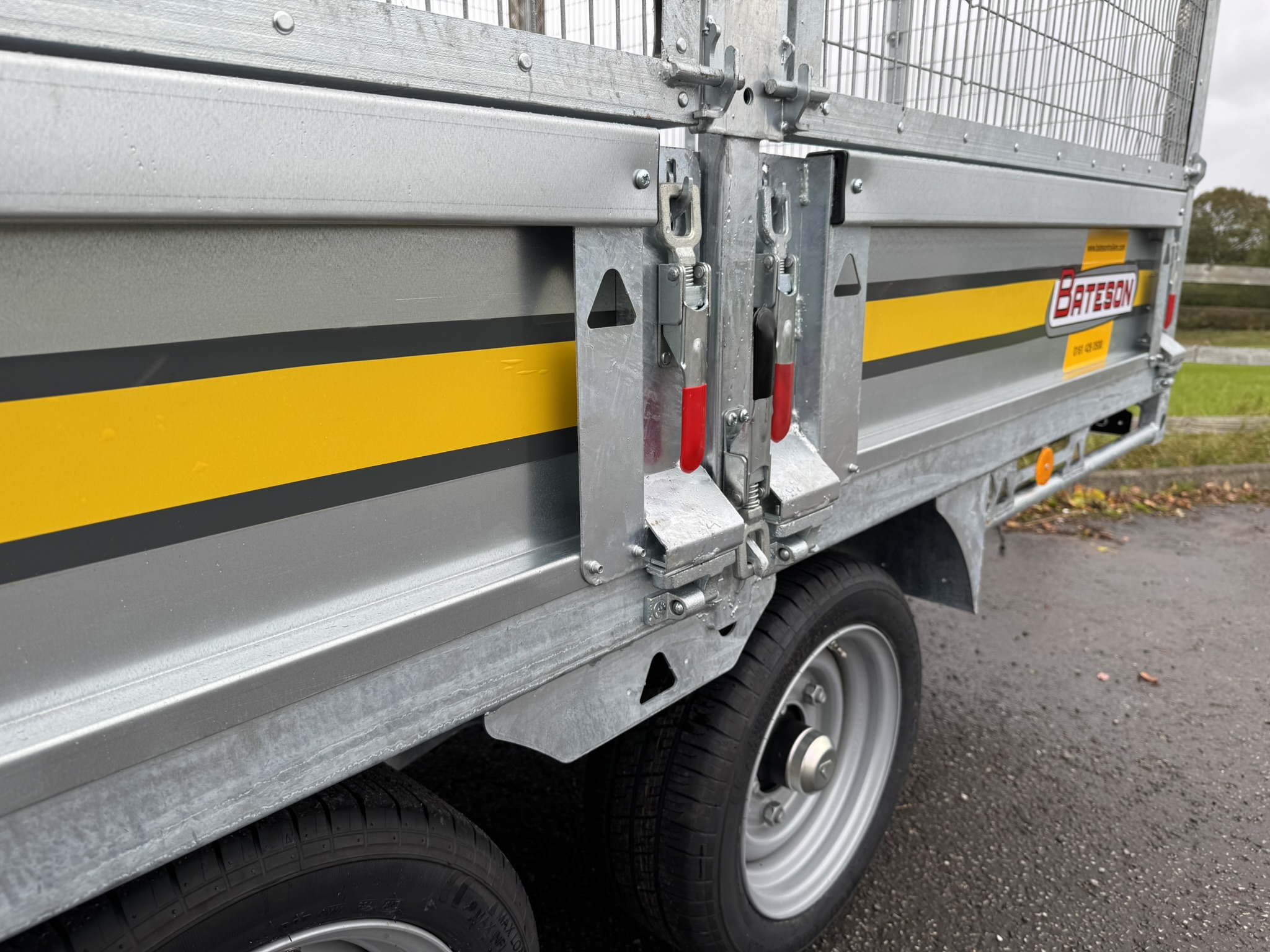

30 cm steel hinged sides and a spare wheel are standard, mesh extension sides with split opening sides and twin rear gates are available as an option.

Trailer Specifications

Trailer Weight And Capacity (KG)

Gross Weight

3500

Unladen Weight

860

Capacity

2640

Overall Dimensions (MM)

Length

4250

Width

2000

Internal Dimensions (MM)

Length

3000

Width

2000

Height

300

Additional Information

Tyre Size

195 - 50 x 13

Tow Ball Height

450

Product Add-Ons

-
+

353H 1.8m loading ramp & carrier

View Product Details

£175.00

-
+

Rear Loading Legs

View Product Details

£85.00

-
+

Ladder Rack

View Product Details

£100.00

-
+

4 Recessed Deck Rings

View Product Details

£100.00

-
+

Alloy Tredplate Floor 10'x6'6"

View Product Details

£345.00

-
+

Commercial wheel clamp

View Product Details

£160.00

-
+

Delivery Charge in England, Wales and Southern Scotland

View Product Details

£130.00

-
+

353H 76cm (30") mesh extn.sides

View Product Details

£450.00
