35-16 Transporter Trailers

16' x 6' 2 hydraulic tilt transporter suitable for larger 4x4s, plant & machinery

The 35-16 is the heaviest trailer in Bateson Trailers ' range of hydraulic tilt transporter trailers. It has a carrying capacity of 2670Kg and is suitable for transporting larger 4x4s, plant and machinery.

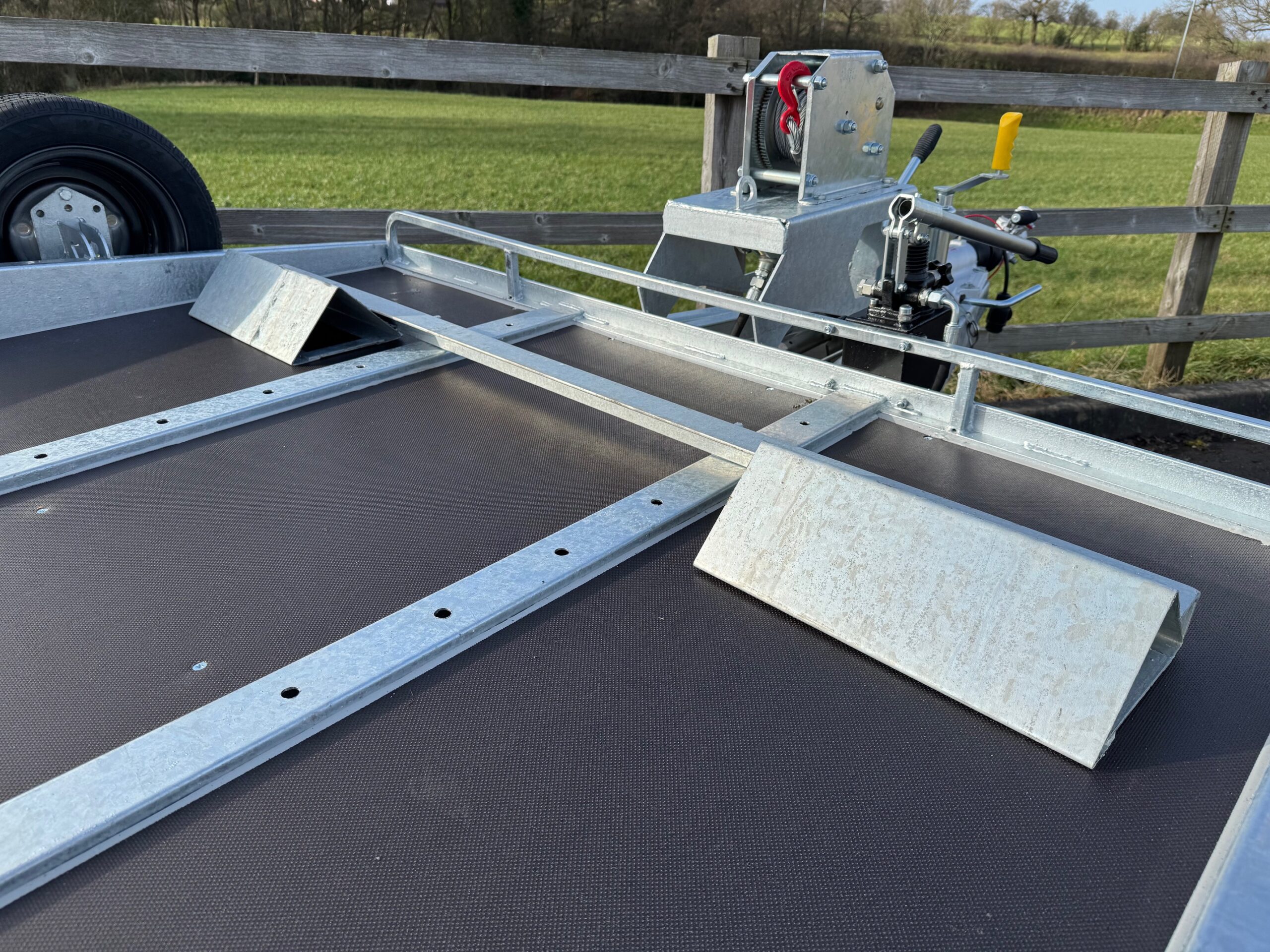

As with all of the hydraulic tilt transporters in the range the 35-16 features full width axles with independent rubber suspension, auto-reversing over-run brakes, full road lights, front jockey wheel, spare wheel, hand winch, front adjustable wheel chock and 12 load securing points.

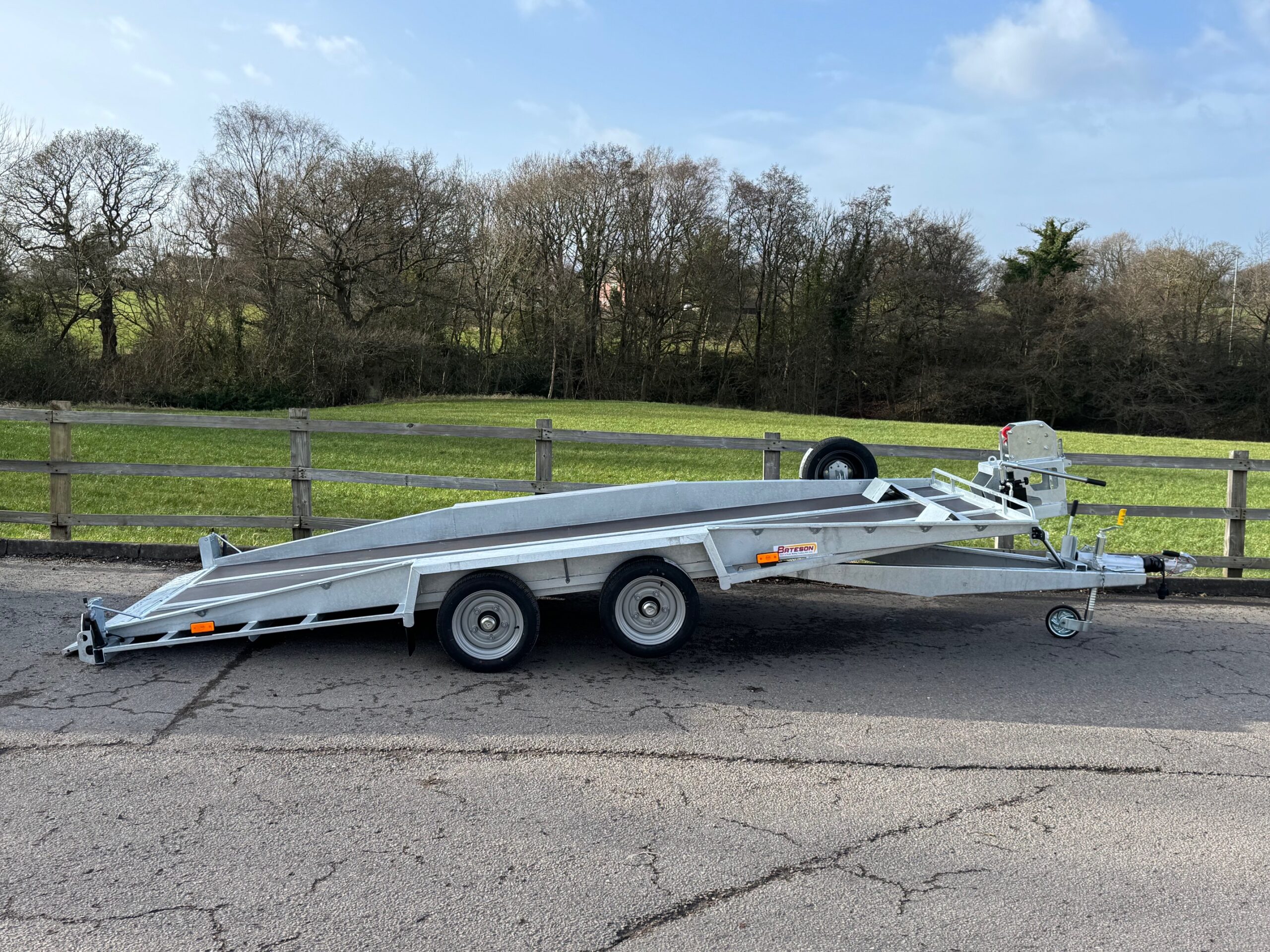

The trailer has a full floor panelled with 18mm phenol ply which tilts back hydraulically to provide a low approach angle, enabling vehicles with front spoilers and low ground clearance to be loaded with ease.

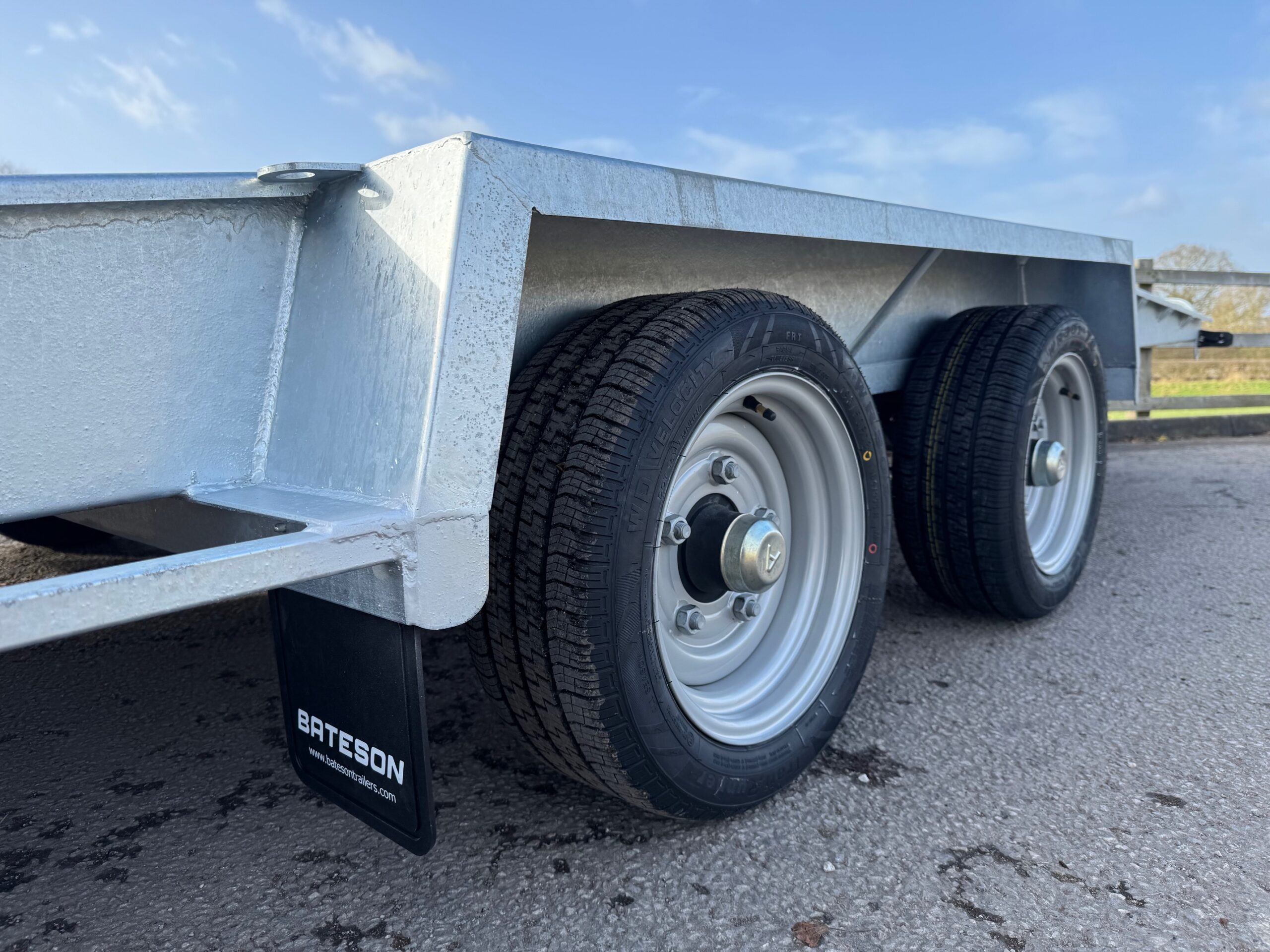

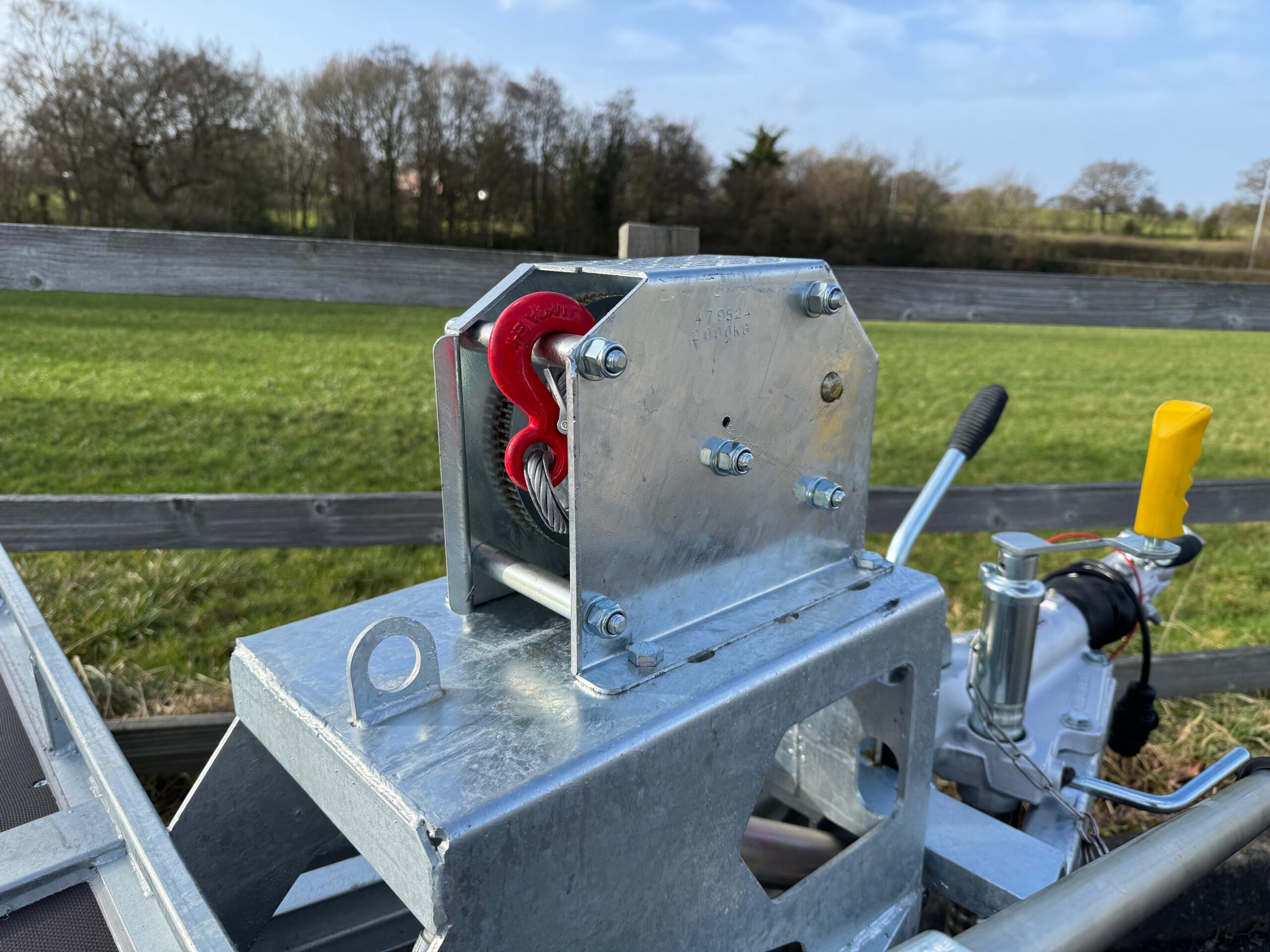

The chassis is hot dipped galvanised with integral mudguards, which are strong enough to stand on and low enough to open car doors over. The body is tilted by means of a hydraulic cylinder and hand pump and can be lowered at a controlled rate.

The body width increases to 2 metres benind the wheels
