Transporter Trailers

Our Products > Transporter Trailers

22-15 Transporter Trailers

£3,700.00 (ex. VAT)

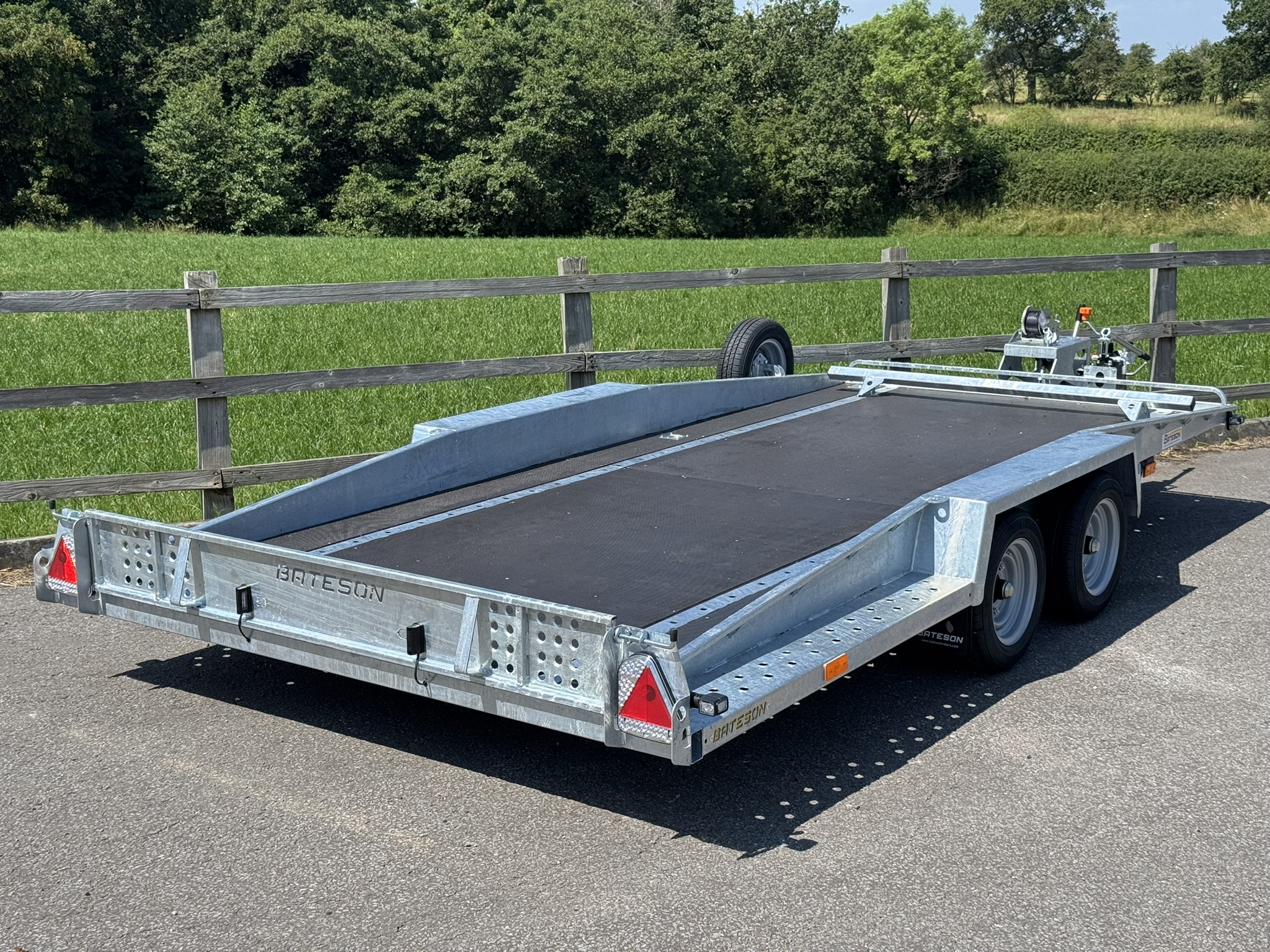

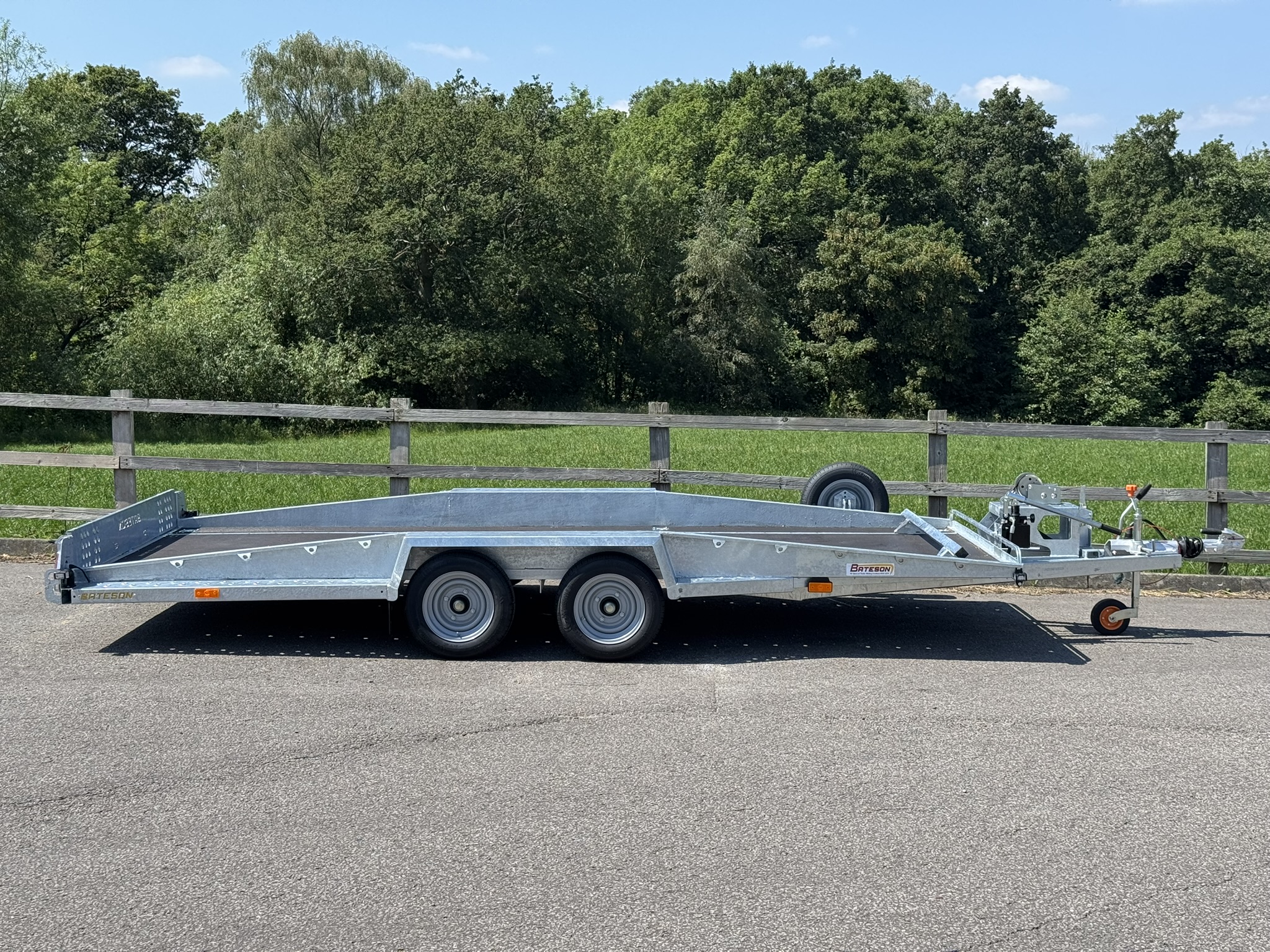

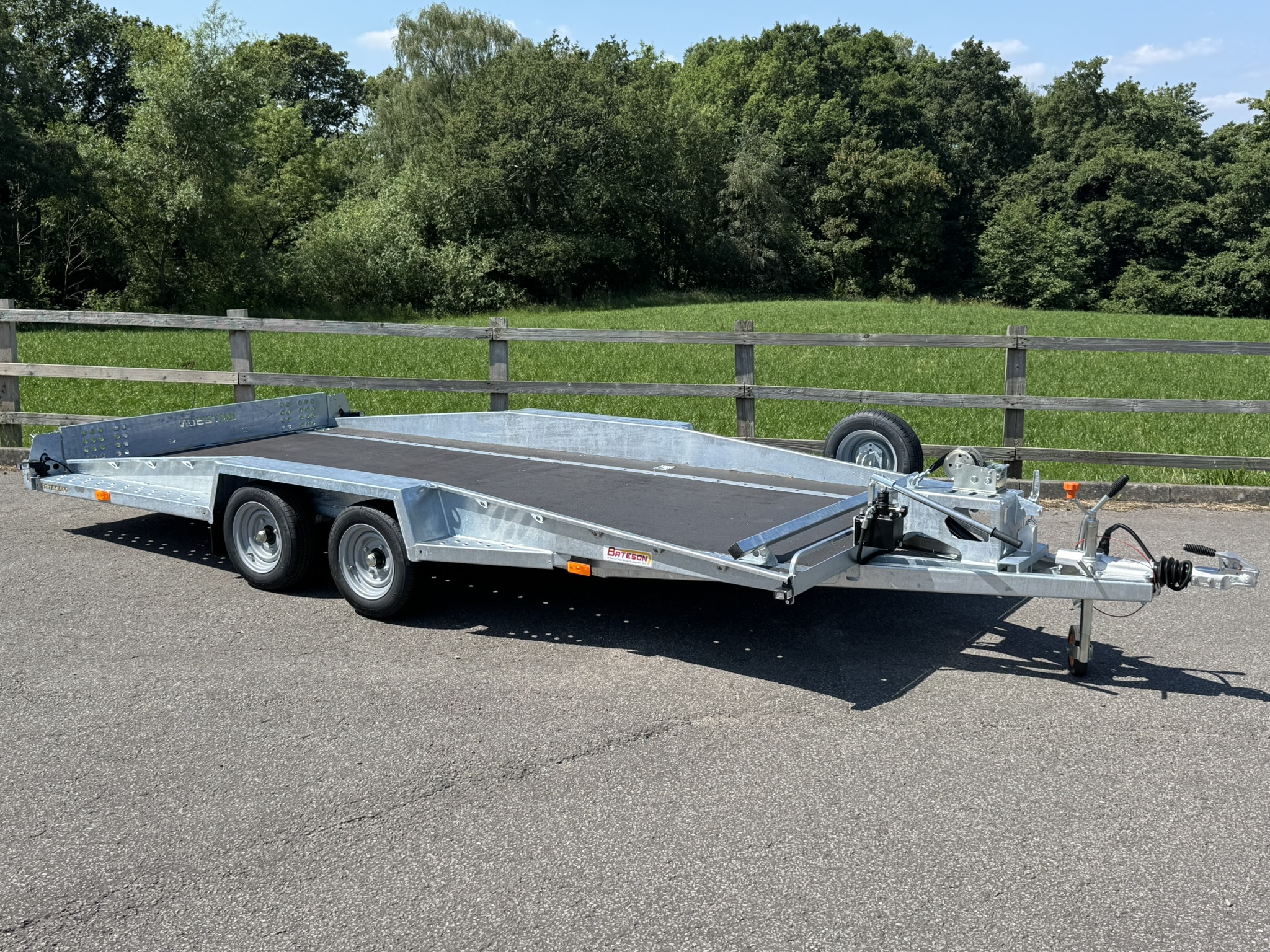

15' x 6' 2 Light weight hydraulic tilt transporter.

The 22-15 is the lightest trailer in Bateson Trailers ' range of hydraulic tilt transporter trailers. It has a carrying capacity of 1560Kg and is suitable for transporting medium sized cars.

As with all of the hydraulic tilt transporters in the range the 22-15 features full width axles with independent rubber suspension, auto-reversing over-run brakes, full road lights, front jockey wheel, spare wheel, hand winch, front adjustable wheel chock and 12 load securing points.

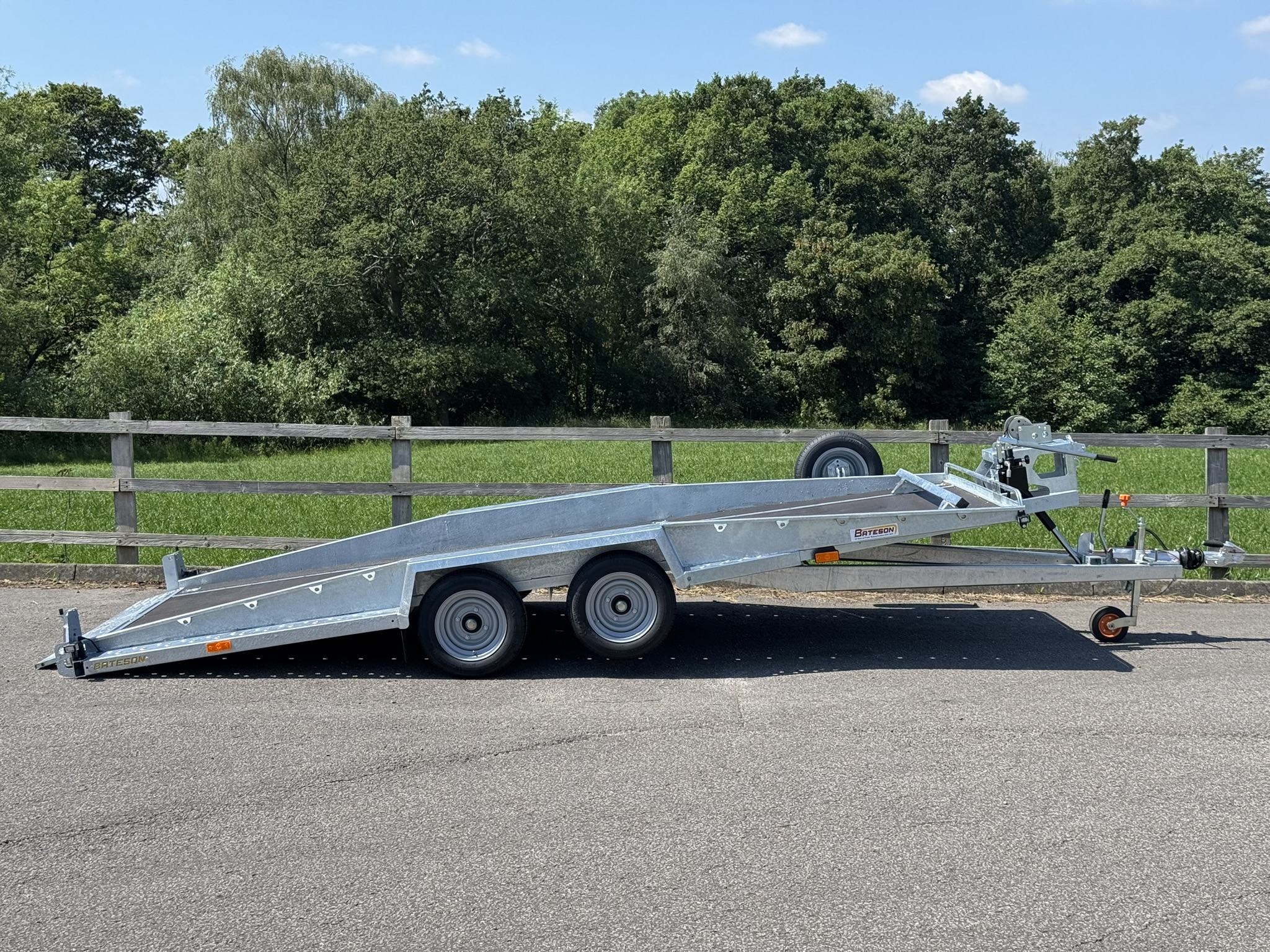

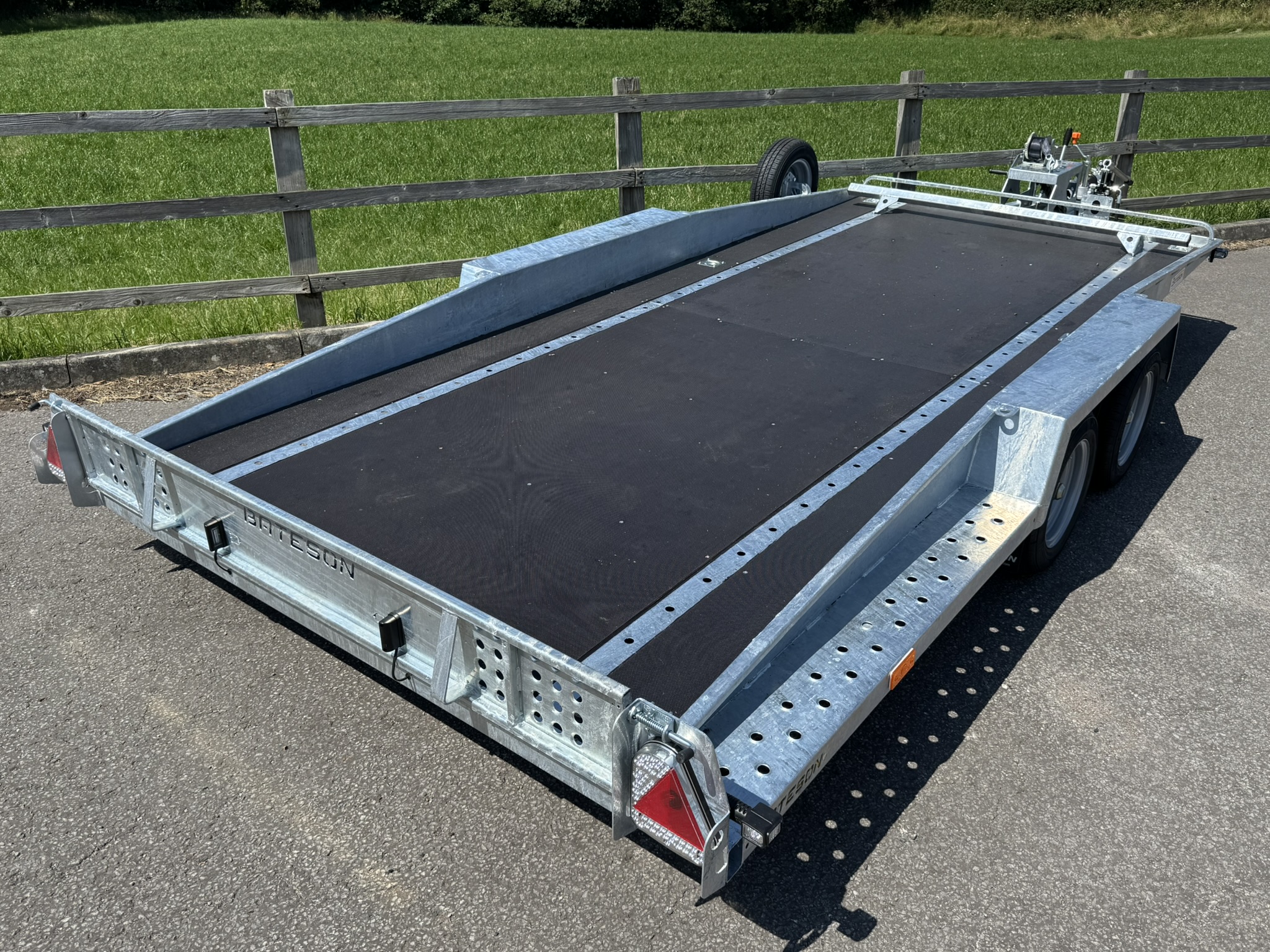

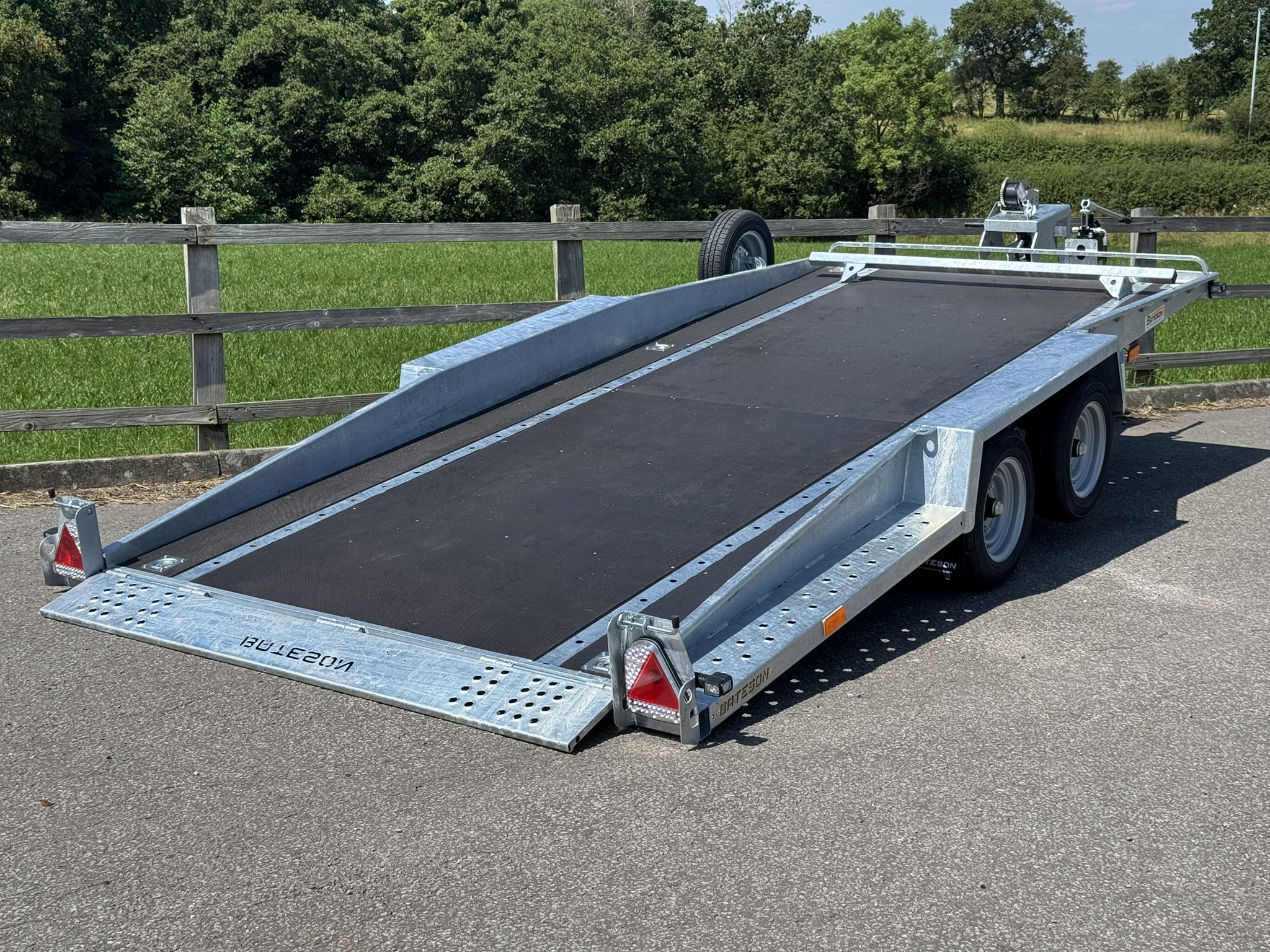

The trailer has a full floor panelled with 18mm phenol ply which tilts back hydraulically to provide a low approach angle, enabling vehicles with front spoilers and low ground clearance to be loaded with ease.

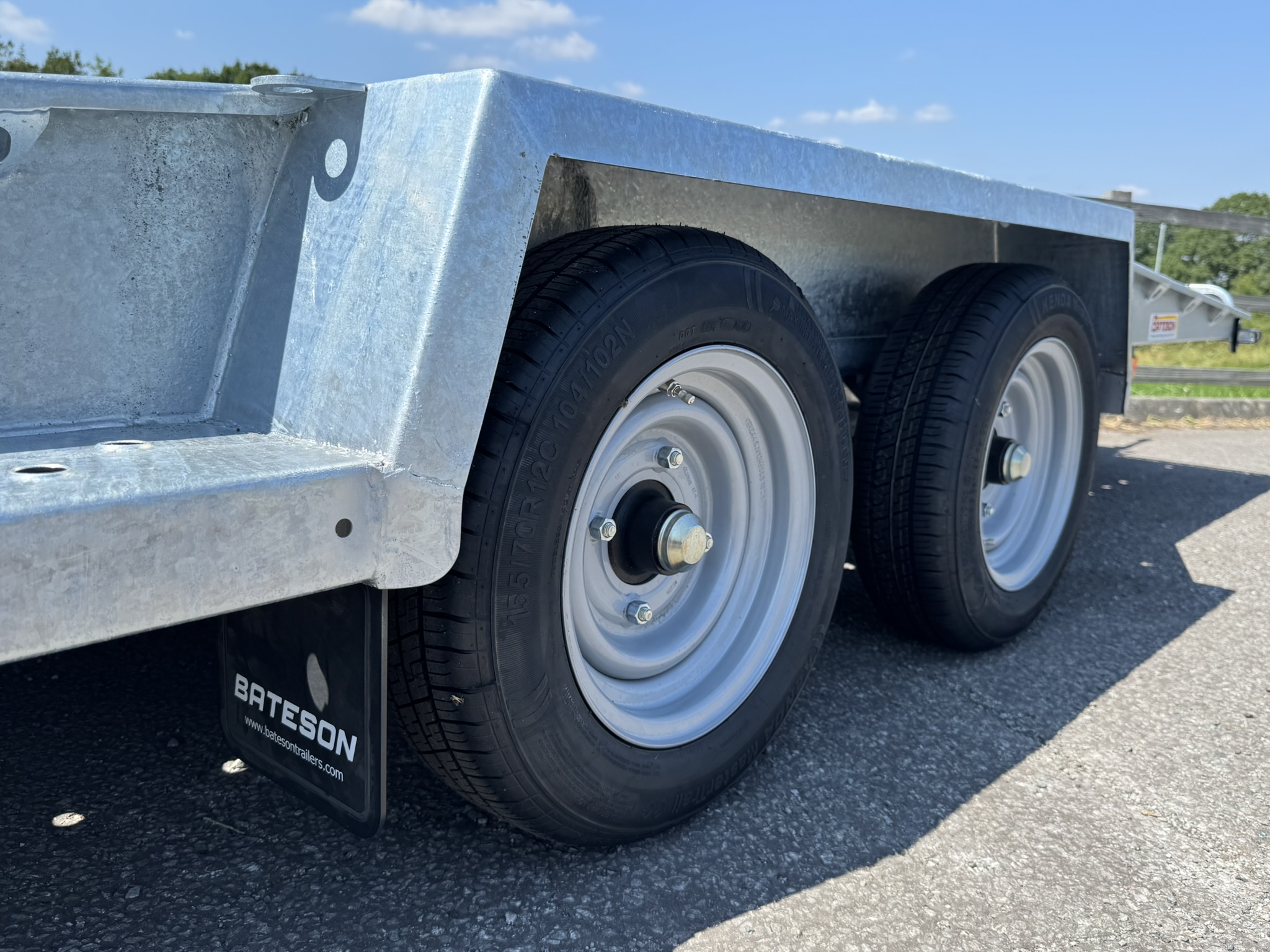

The chassis is hot dipped galvanised with integral mudguards, which are strong enough to stand on and low enough to open car doors over. The body is tilted by means of an hydraulic cylinder and hand pump, This allowing the trailer to be lowered at a controlled rate.

*Internal Length and Width refer to the platform dimensions

Request a Quote

Trailer Specifications

Trailer Weight And Capacity (KG)

Gross Weight

2200

Unladen Weight

680

Capacity

1520

Overall Dimensions (MM)

Length

6100

Width

2280

Height

0

Internal Dimensions (MM)

Length

4550

Width

1870

Height

200

Additional Information

Tyre Size

155 - 70 x 12

Tow Ball Height

0
